Question 1

Does Kirchhoff's Voltage Law work for circuits with inductors and capacitors?

Accepted Answer

Yes. KVL still applies in lumped-element circuits containing inductors and capacitors. For inductors, the voltage-current relationship is v = L(di/dt), and for capacitors, i = C(dv/dt).

In AC steady-state analysis, you replace these with impedances (Z_L = jωL, Z_C = 1/jωC) and work in the phasor domain.

However, if significant time-varying magnetic fields couple different parts of the circuit (such as in transformers or circuits with strong mutual inductance), the simple statement that the sum of voltages around a loop is zero becomes an approximation rather than exact. You'd then need to explicitly include the induced EMF from Faraday's law.

Question 2

Can I apply Kirchhoff's laws to open circuits?

Accepted Answer

KCL requires nodes where currents actually flow. In an ideal open circuit, the current through the open branch is zero, but that zero is itself a valid value. Other nodes and branches in the circuit can still be analyzed normally with KCL. KVL can be applied around any closed path in the circuit diagram, even if no current flows in part of that path. Voltage drops and rises remain well-defined as long as the elements have defined terminal voltages.

Question 3

How many independent KCL and KVL equations do I need?

Accepted Answer

You need exactly as many independent equations as you have unknown currents or node voltages. A practical rule: for a circuit with N nodes, write KCL at (N − 1) nodes (the last equation would be linearly dependent).

For KVL, choose the independent meshes rather than writing equations for every possible loop. In a planar circuit, the number of independent meshes equals the number of simple "window" loops. Together, KCL and KVL equations should give you a solvable system.

Question 4

Why do some sources say Kirchhoff's laws "fail" at high frequencies?

Accepted Answer

At very high frequencies, wires behave as transmission lines with distributed inductance and capacitance, and electromagnetic waves propagate along them with finite speed.

The lumped-element model that underpins Kirchhoff's laws no longer holds because voltage and current vary along the length of a wire, not just at discrete nodes. In such cases, Maxwell's equations and transmission-line theory replace simple KCL/KVL.

A 2025 study by Eisenberg formally derived KCL from Maxwell's equations, quantifying exactly when the classical approximation breaks down. For most power systems and low-frequency electronics, Kirchhoff's laws remain highly accurate.

Question 5

How do Kirchhoff's laws relate to modern circuit simulators like SPICE?

Accepted Answer

Circuit simulators internally apply KCL at every node and KVL around loops, combining them with device models (transistors, diodes, etc.) to generate and solve large systems of equations automatically.

Understanding Kirchhoff's laws helps engineers interpret simulation results, set up correct schematics, and debug convergence or sign-convention issues in complex designs.

If you can set up KCL and KVL by hand, you'll have a much easier time understanding what SPICE is doing under the hood, and you'll catch schematic errors before they waste simulation time.

Circuit Theorems

Kirchhoff’s Laws: KCL and KVL for Circuit Analysis

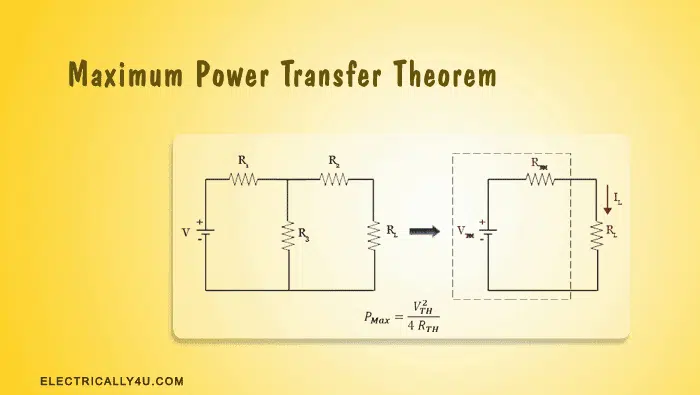

Maximum Power Transfer Theorem

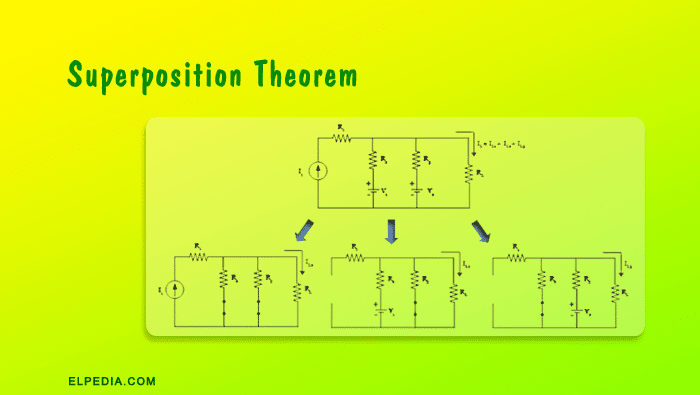

Superposition Theorem with solved problems

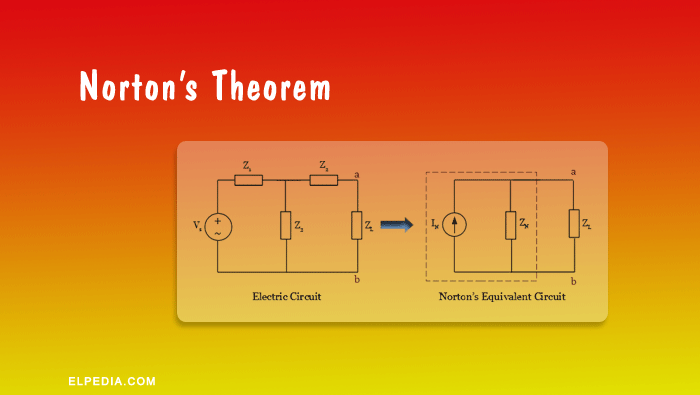

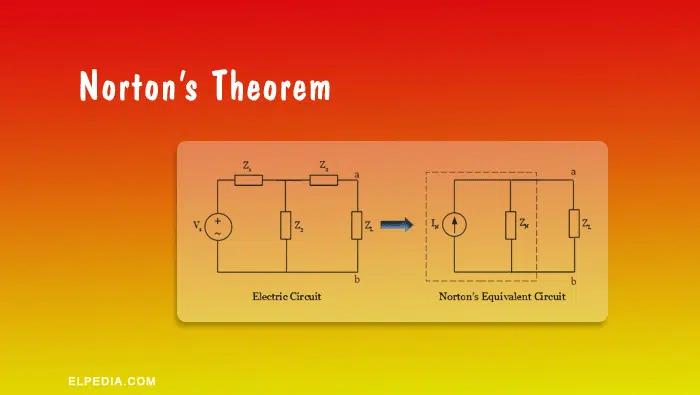

Norton’s Theorem with solved problem

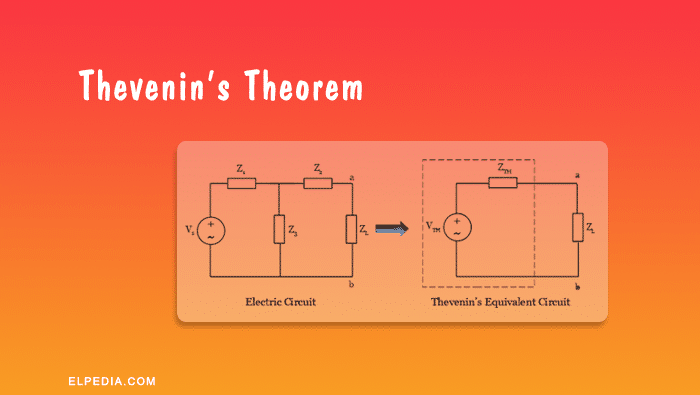

Thevenin’s Theorem with solved problem
